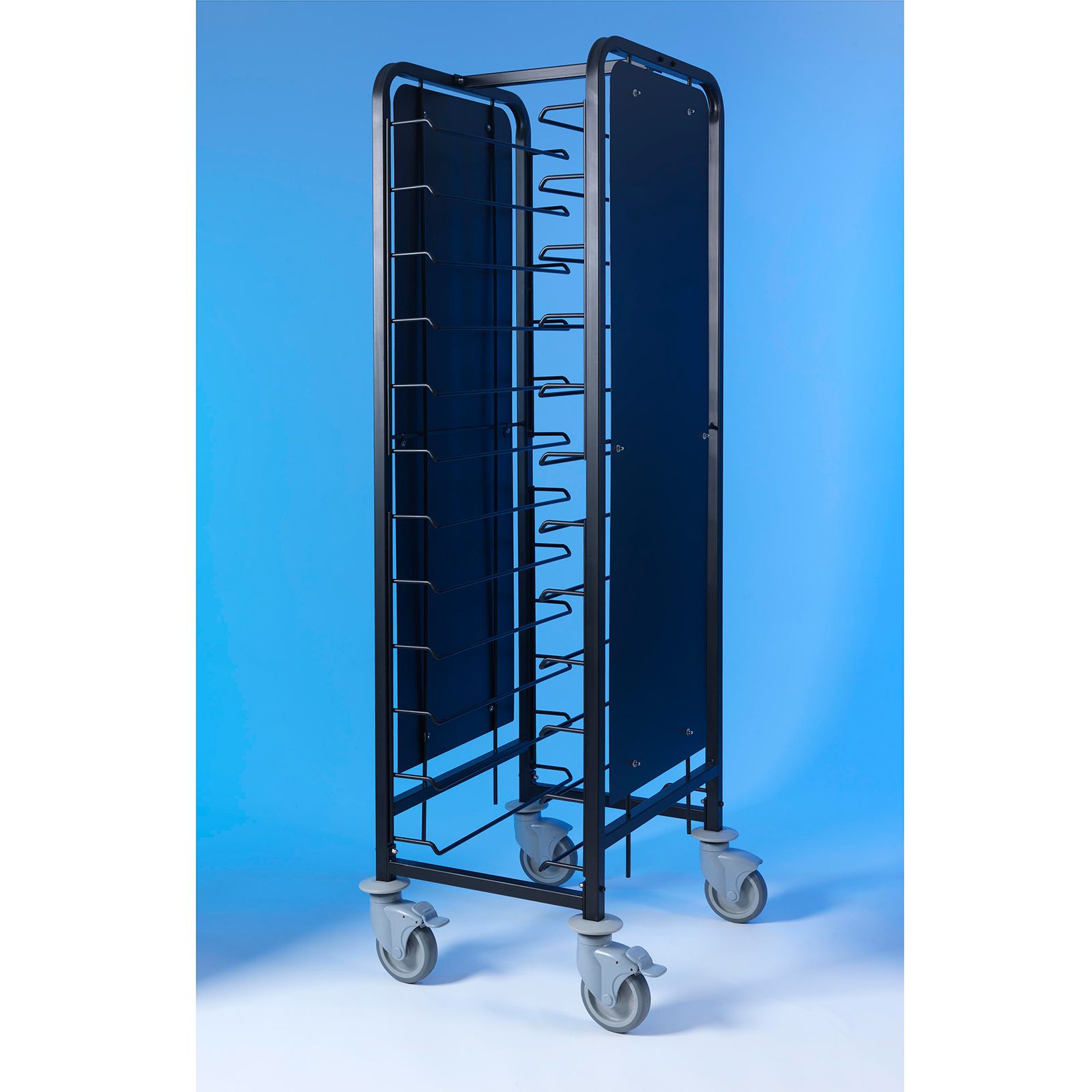

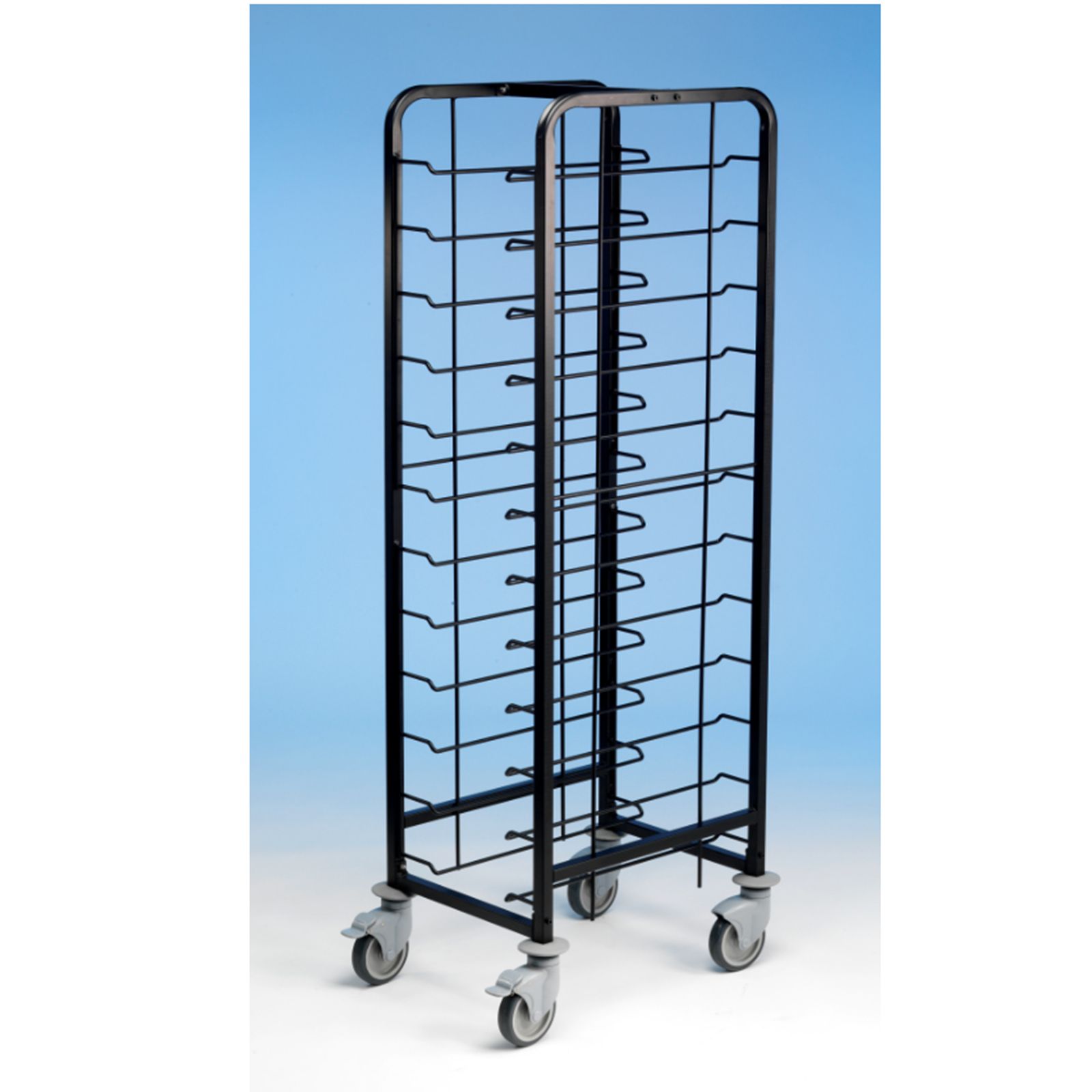

Single unit: 513mm x 633mm x 1700mm high - 10 or 12 tiers. Net weight 18Kg.

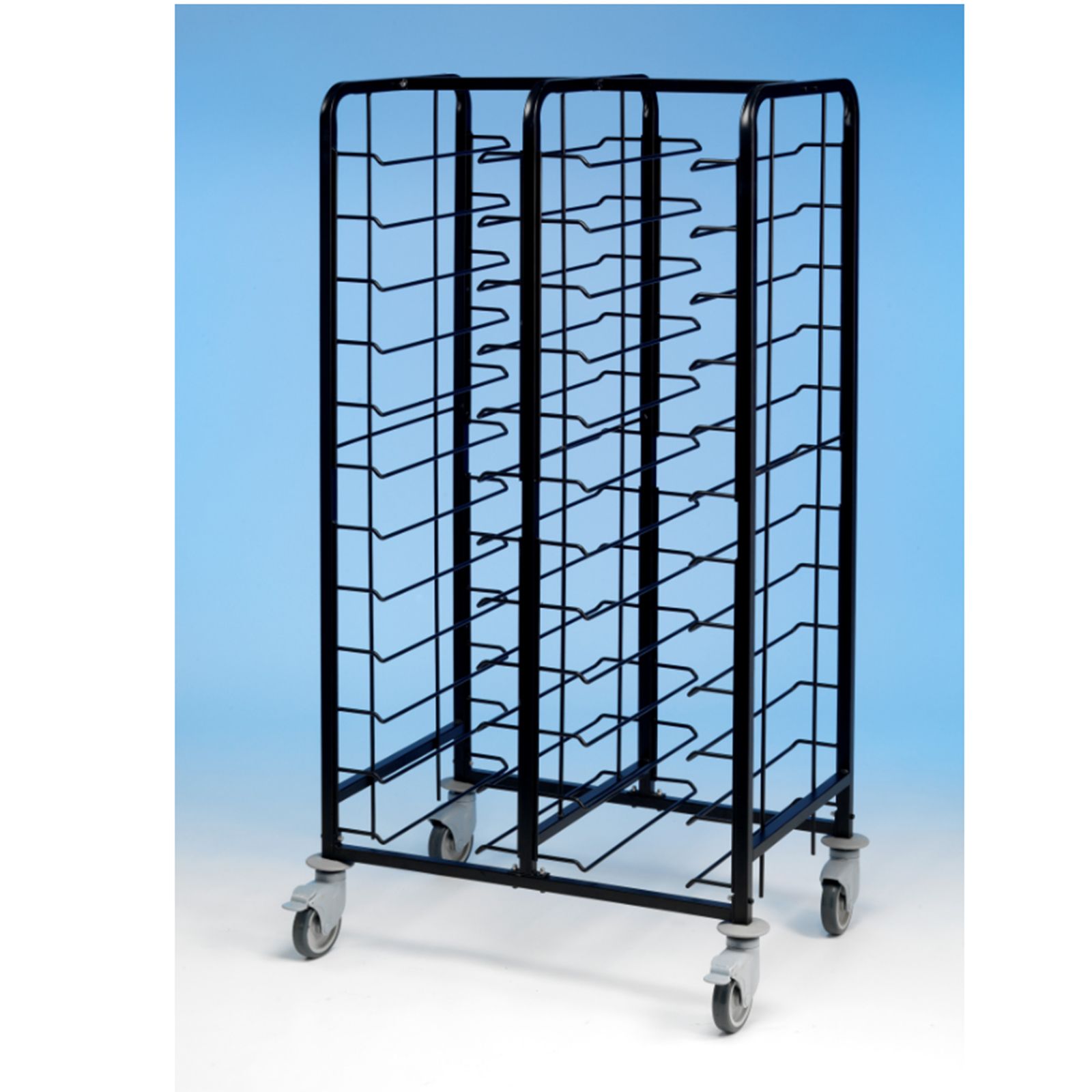

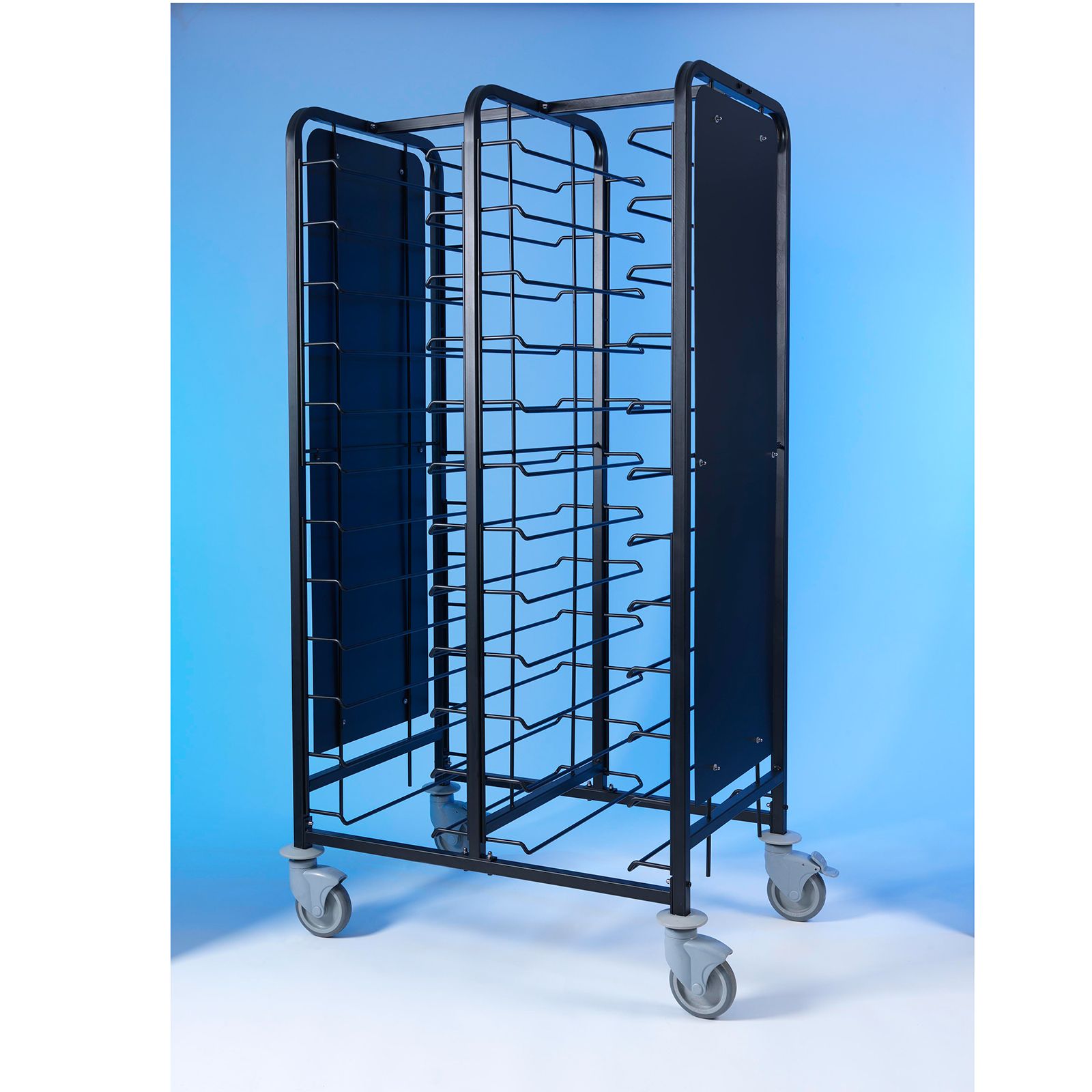

Double unit: 933mm x 633mm x 1700mm high - 2 x 10 or 2 x 12 tiers. Net weight 31Kg.
Tray Size: 460×360 / 480×370 / 530×325 / 350×270 / Fast food and gastro 1/1
Tray side pitch: 10 tier = 140mm, 12 tier = 115mm
Finish
- Epoxy coated steel 25×25mm tubular frame construction
- One piece formed sides and centre frames
- Steel 8mm wire ‘universal’ trayslides
- Black standard colour
Features
- Trayslide design allows ‘easy feed’ into trolley and stops for safe transportation
- One piece formed side and centre frames
- 125mm castors, non-marking (2× braked) – bumpers fitted as standard
Additional Information
Loading 10Kg per level
Load profile 375mm
Usage
- Canteen / Dining
- Coffee Shops
- School Meals
