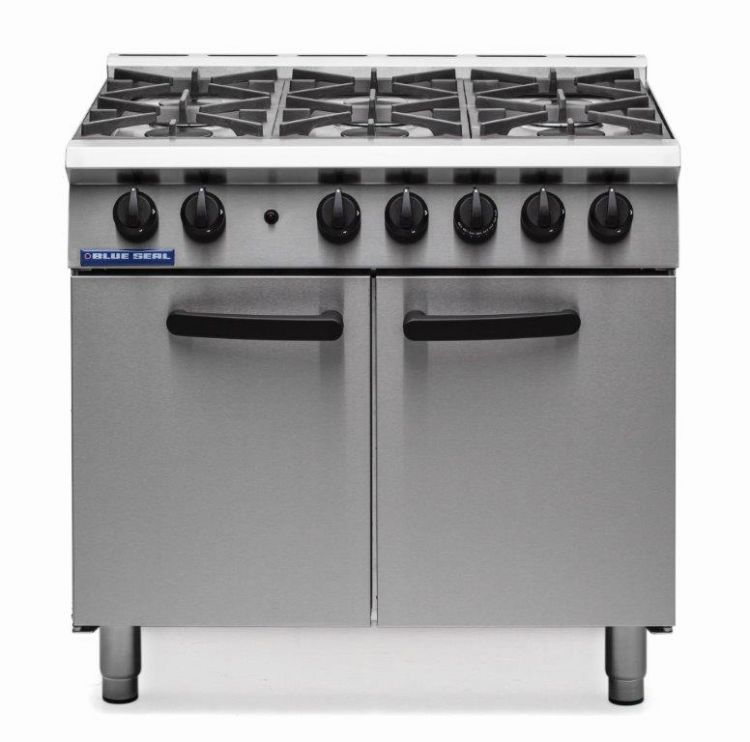

Blue Seal G750-6 6 Burner Natural Gas Oven Range

Blue Seal G750-6 6 Burner Natural Gas Oven Range

Blue Seal G750-6 6 Burner Natural Gas Oven Range
750mm depth
Medium-duty
Stainless steel finish
Easy view controls
Semi-sealed hob
Hygienic 1-piece hob front
5.8 kW open burners
Lift off brass burners with enamelled caps
Lift off stainless steel spill tray
Vitreous enamelled cast iron double potstands
GN 2/1 gas static oven
7.9 kW oven burner
130-270°C thermostatic control
Piezo ignition to oven burner
Side hinged doors
Vitreous enamelled oven liner
Removable vitreous enamelled oven base tray
5 shelf position racking
Removable chrome wire rack supports
Supplied with 2 chrome wire oven racks
Stainless steel adjustable legs standard

Options-
• Available in Natural gas and Propane gas, please
specify when ordering
• Gas type conversion kit
• Adjustable castor kit

Specifications-
Burner Ratings (gross)
Open burners 5.8 kW, 20,000 Btu/hr
Oven burner 7.9 kW, 27,000 Btu/hr
Total Ratings (gross)
42.7 kW, 147,000 Btu/hr
Gas Connection
3/4 (BSP) female
All units supplied with 3/4 BSP hex nipple
Nat gas units supplied with regulator
Supply Pressure
Natural gas 20mbar
Propane gas 37mbar
Operating Pressure
Natural gas 15mbar
Propane gas 37mbar
Gas Consumption
Natural gas 4.0m3/hr
Propane gas 3.0kg/hr
Installation Clearances
From combustible surfaces
Sides 150mm
Rear 100mm
Dimensions-
Width 900mm
Depth 750mm
Height 890mm hob
Height 921mm overall
Oven Dimensions-
Width 770mm
Depth 605mm
Height 420mm
Rack size 745mm x 540mm
Rack positions 5
Nett weight
110kg
Packing data
0.70m3, 155kg
Width 935mm
Depth 865mm

Height 862mm

12 Months Parts and Labour Warranty (subject to terms and conditions)
