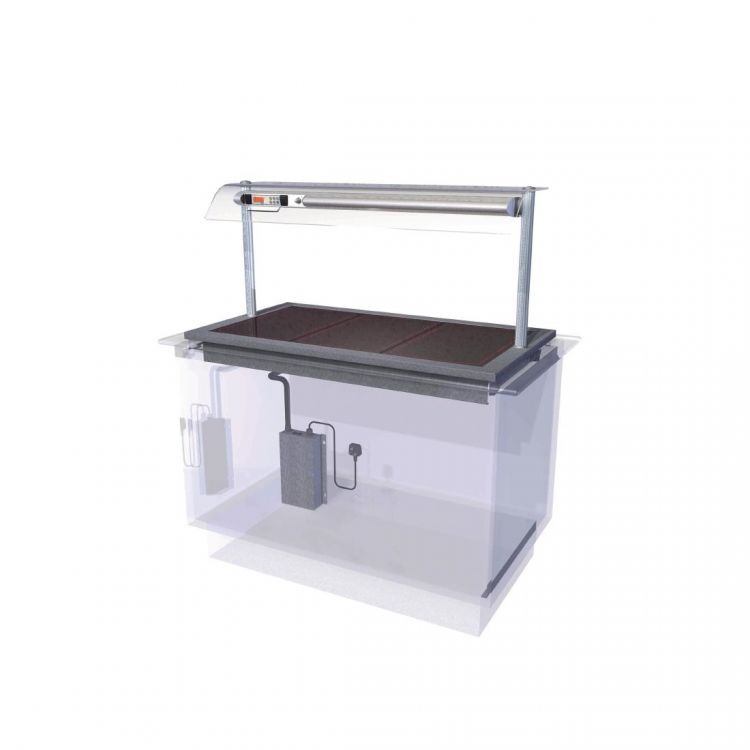

Designline Drop In Ceran Glass Hotplate HP3
Display, illuminate, heat and protect pre-cooked food with CED's elliptically shaped Designline self help ceran glass hotplate drop in display. This 3/1 Gn size hot display features a 3/1Gn heated ceran glass area which accept various sized Gn flat bottomed dishes and containers. The display fits into a pre-formed cut out made in a countertop . The self help superstructure is made from bright polished steel and alluminum curved profiles, with curved, toughened glass sneeze screen protection to the customer side of the display. Product illumination/ surface heat is provided by infra red quartz heat lamps, housed in the elliptical profile gantry. Base heat and surface heat can be adjusted & 'locked' from the operator side of the gantry, by digital temperature display ( control panel ) and adjustable dimmer switch, mounted at eye level. The display has 24 hour operation & is factory set to hold food core at 85 deg. C. Modular heater mat elements under the heated ceran glass give even heat spread & the ceran presentation surface makes for easier cleaning. The display comes complete with lifting kit for installation and is supplied with a concealed control box & plug top on a 2M lead. GN's Sold Separatley.
- Curved display in bright polished steel and aluminium profile
- Self help application
- 24 hour operation as standard.
- Features gantry mounted digital temperature display, base heat control panel and top heat control by dimmer switch. (to operator side of display)
- Supplied with lifting kit for installation and concealed control box & UK 3 pin plug top on a 2M lead
- Curved glass profile is designed to complement other units within the Designline range
- Features a flat heated ceran glass dish presentation area, heated evenly from underneath by individual heater mat elements
- Product illumination/ surface heat is provided by infra red quartz heat lamps to each 1/1Gn area. Lamps are housed within an elliptical profile gantry and mid shelf
- Gantry fitted with curved toughened sneeze screen glass for food protection
Dimensions: 535(H) x 1175(W) x 660(D)mm
