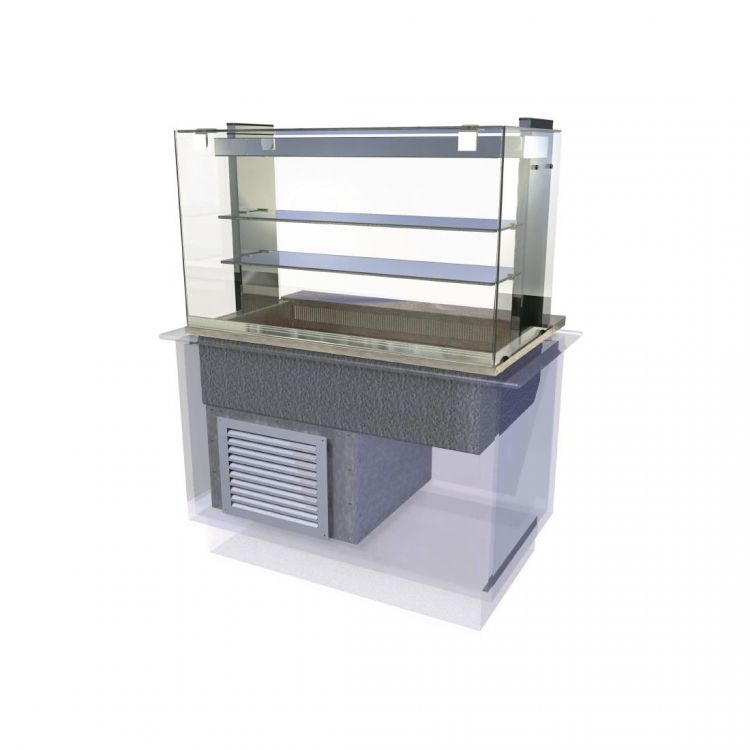

Kubus Drop In Multideck Assisted Service 1175mm KCMDL3HT
Illuminate, chill and protect refrigerated food or drink with CED's rectangular shaped Kubus assisted service cold multi level deli drop in display. This energy efficient 3/1 GN size refrigerated display chills by hydrocarbon refrigerant (r290) - a solution that's kinder to the environment and your budget. The display fits into a countertop and fitting the air grills supplied provides the ventilation needed for the underslung refrigeration condensing unit. The superstructure is made from bright polished steel and aluminium rectangular profiles, with flat and toughened full height front and side glass. The front glass tilts forward on a locking hinge, for effortless cleaning access. Product illumination is from diffused lighting in the rectangular profile gantry, which also houses an eye level digital temperature display and 'temperature lockable' control panel, to the operator side of the display. The display has 24 hour operation as standard and holds food core between 2?C to 5?C. Modular removable deck plates in the chilled well make for easier cleaning and an integral condensate water evaporator eliminates the need for site drainage. Optional chopping boards fit over the rear display shelf providing a local sandwich preparation area. Additional ambient display space is also provided by two toughened glass mid shelves within the display area. The display comes complete with air inlet grills, lifting kit and a 2m lead and plug top for installation. GN's Sold Separately.
- Rectangular gantry in bright polished steel, powder coated black gantry side panels and aluminium profile
- Features eye level gantry mounted digital temperature display & control panel (to operator side of display)
- 24 hour operation as standard
- Product illumination is provided from diffused lighting within the gantry
- Two additional ambient glass mid shelves provide additional merchandising space above the cold display area
- Flat glass profile is designed to complement other units within the Kubus range
- Ventilation grills and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket
- (Cold well area) Drinks display examples: Still & carbonated, bottled, canned or carton drinks, water, dairy, lemonade, wine, beer, lager, fruit juice & health drinks. (Cold well area) Food display examples: Pies, pasties, sausage rolls & cooked meats, sandwich fillings, baked potato fillings, salad items & cheese, sandwiches, baguettes, rolls, barm cakes, pasta, cream cakes & pastries, cakes, yoghurt, fruit in juice & fruit
- (Ambient shelving area) : Food display examples : Danish pastries, muffins, donuts, fruit cake, biscuits, fruit, chocolate, crackers, rice cakes, tacos, crisps, nuts. Sandwiches, baguettes, rolls, barm cakes & cheese subject to local health regulations
- The 3/1 GN well display area is chilled by energy efficient hydrocarbon refrigerant (r290)
- Gantry fitted with flat full height toughened glass sneeze screen and side glass for food protection. Glass tilts forward in a locking hinge for ease of cleaning
- Assisted service application
Dimensions: 700(H) x 1175(W) x 784(D)mm
