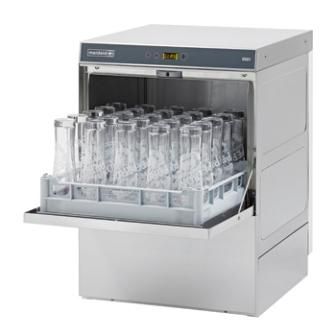

Maidaid C502-GW 500mm Basket No Drain Pump

Click image to enlarge

Product Code

£2715.60 (Including VAT) £2263.00 (Excluding VAT)

Quantity:


Quality Assured Guarantee		Finance Available

2 year warranty
Bright LED display with soft touch panels
Accurate detergent and rinse aid peristaltic dosing as standard
Supplied with two open cup/glass racks
Three selectable cycle options plus special application cycle options
Cycle times between 70 & 240 secs, including special cycles
Cycle times can be tailored to site requirements
Selectable energy saving mode
Selectable thermostop ensures optimum rinse temperatures
Automatic self-cleaning at end of service
Surface scrap tray filters
Operational self diagnostics
Twin traffic light display indicate machine status
Drain pump optional
Partial double skinned reducing noise and heat loss
Suitable for hot (max 50°C) or cold water supply at 2 to 4 bar dynamic supply pressure
Machines fitted to cold water supplies will not be capable of running repeated short cycles.
The cycle time will automatically be extended to allow recovery of correct operating temperatures
Wash temperature 60°C (adjustable)
Rinse temperature 65°C (adjustable)

Width x Depth x Height mm	580 x 610 x 815mm
Feet Height	10mm-20mm
Basket size	500x500mm
Maximum useable height	320mm
Door Opening	365mm
Cycle times	70/110/150 Seconds
Water consumption per cycle	2.7 Litres
Wash tank capacity	20 Litres
Phase - Options	Single/3-Phase
Power – Single Phase Options	2.6kW(13Amp),4.5kW(20Amp), 6.5kW(30Amp)
Power – Three Phase	6.5kW(16Amp)
Detergent pump	Peristaltic - non timed
Rinse aid pump	Peristaltic - non timed
Drain pump	Optional
Breaktank	No
Water supply pressure	2 to 4 Bar
Body Construction	Partial Double Skin
Door/Hood Construction	Double Skin
Scrap Trays	Yes
Internal Rinse Booster Pump	N/A
Number Of Cycles	4
Total Maximum Load(as supplied)	6.5kW(13Amp) - Single Phase
