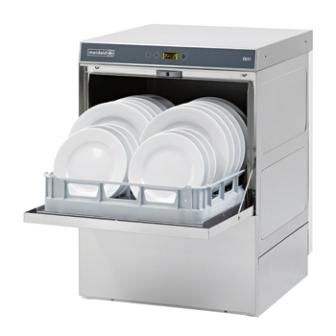

Maidaid C512 No Drain Pump

Click image to enlarge

Product Code

£2900.40 (Including VAT) £2417.00 (Excluding VAT)

Quantity:


Quality Assured Guarantee		Finance Available

2 year warranty
Increased usable height
Four button bright LED display with soft touch controls, twin traffic lights giving instant status updates & operational self-diagnostics
Alarms menu with hi-level information retrieval
Improved wash action from quick release parallel wash & rinse arm design
Supplied with breaktank as standard
Fitted drain pump version available, drain pump cannot be retro fitted
Three standard cycle time options with further options available
Cycle times can be tailored to site requirements
Reduced water consumption
Automatic self-cleaning at end of service
Selectable energy saving mode
Selectable thermostop ensures optimum rinse temperatures
Patented dual flow wash pump - reducing power consumption whilst retaining wash efficiency
Moulded wash tank for easy cleaning
Moulded rack guide giving partial double skin
Surface scrap tray filters supplied as standard
Accurate detergent and rinse aid peristaltic dosing pumps as standard
Supplied with one pegged rack, one open cup/glass rack & cutlery insert

Width x Depth x Height mm	580x610x810mm
Feet Height	10mm-20mm
Basket size	500x500mm
Maximum useable height	340mm
Door Opening	365mm
Cycle times	70/90/180 Seconds
Water consumption per cycle	2.0 Litres
Wash tank capacity	20 Litres
Phase - Options	Single/3-Phase
Power – Single Phase Options	2.6kW(13Amp),4.5kW(20Amp), 6.5kW(30Amp)
Power – Three Phase	6.5kW(16Amp)
Detergent pump	Peristaltic - non timed
Rinse aid pump	Peristaltic - non timed
Drain pump	No
Breaktank	Yes
Water supply pressure	2 to 4 Bar
Body Construction	Partial Double Skin
Door/Hood Construction	Double Skin
Scrap Trays	Yes
Internal Rinse Booster Pump	Yes
Number Of Cycles	3
Total Maximum Load(as supplied)	6.5kW(30Amp) - Single Phase
