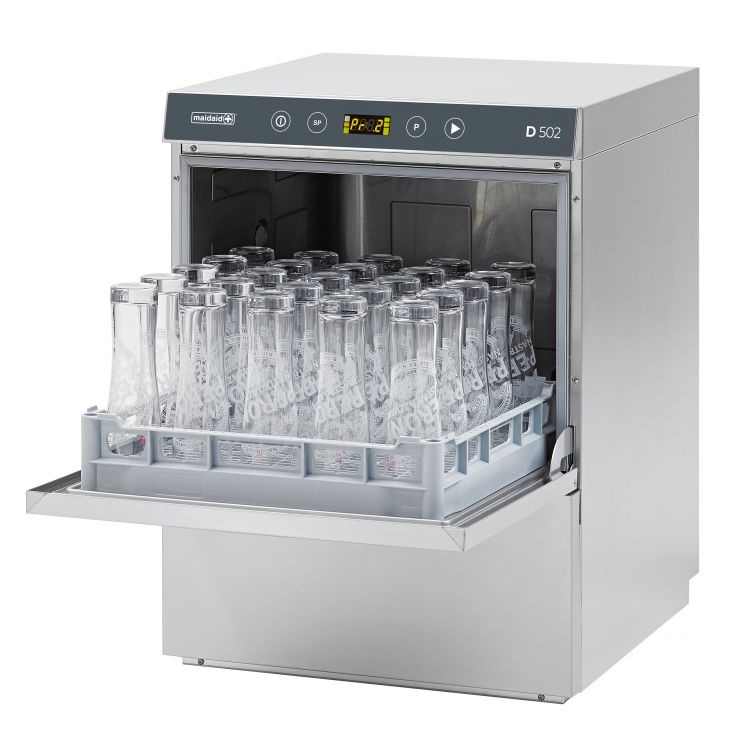

Maidaid D502 500mm Basket With Drain Pump

Click image to enlarge

Product Code

£3492.00 (Including VAT) £2910.00 (Excluding VAT)

Quantity:


Quality Assured Guarantee		Finance Available

2 year warranty
Four button bright LED display with soft touch controls, twin traffic lights giving instant status updates & operational self-diagnostics
Alarms menu with hi-level information retrieval
Improved wash action from quick release parallel wash & rinse arm design
Improved triple wash tank filtration
Three standard cycle time options with further options available
Cycle times can be tailored to site requirements
Reduced water consumption
Comprehensive automatic self-cleaning at end of service
Selectable energy saving mode
Selectable thermostop ensures optimum rinse temperatures
Fully double skinned minimising both acoustic output and reduced heat loss
Patented dual flow wash pump with soft start - reducing power consumption whilst retaining wash efficiency
Full door seal and door ajar facility
Moulded wash tank for easy cleaning
Moulded rack guide
Surface scrap tray filters supplied as standard
Accurate detergent and rinse aid peristaltic dosing pumps as standard
Supplied with two open cup/glass racks & cutlery insert

Width x Depth x Height mm	600 x 600 x 710mm
Feet Height	10mm-20mm
Basket size	500x500mm
Maximum useable height	260mm
Door Opening	285mm
Cycle times	90/120/150 Seconds
Water consumption per cycle	2.0 Litres
Wash tank capacity	15 Litres
Phase - Options	Single/3-Phase
Power – Single Phase Options	2.6kW(13Amp),4.5kW(20Amp), 6.5kW(30Amp)
Power – Three Phase	6.5kW(16Amp)
Detergent pump	Peristaltic - non timed
Rinse aid pump	Peristaltic - non timed
Drain pump	Yes
Breaktank	No
Water supply pressure	2 to 4 Bar
Body Construction	Double Skin
Door/Hood Construction	Double Skin
Scrap Trays	Yes
Internal Rinse Booster Pump	N/A
Number Of Cycles	3
Total Maximum Load(as supplied)	6.5kW(30Amp) - Single Phase
